Integrated Tightening Module Series

Torque Range：0.6~15Nm

The Integrated Tightening Module Series can be used in conjunction with a three-axis module, collaborative robot, or industrial robot to achieve fully automatic screw tightening. This is done by automatically blowing the screws to the gun head or receiving table through the nail feeding machine.

Product advantages

Structural integration

?The structure is compact,the gas-electricity layout is simple, and the field space is saved;

?Applicable to complex working conditions;

?More lightweight (reduced by 20-30%), applicable to 5Kg robot;

Collaborative high quality

?With patented design and special structure, the screw suction tube can stop at the screw pick position for screw suction;

?The clamping block opens actively and has no impact abrasion with the screw suction pipe, so the service life is prolonged;

More convenient to use

?The replacement of the bit is convenient, the bit can be quickly replaced when the cylinder stretched out;

?Through the pressure regulating valve on the air circuit, the pressure can be flexibly adjusted when tightening;

Safer handling

?Product safety, suitable for man-machine cooperation;

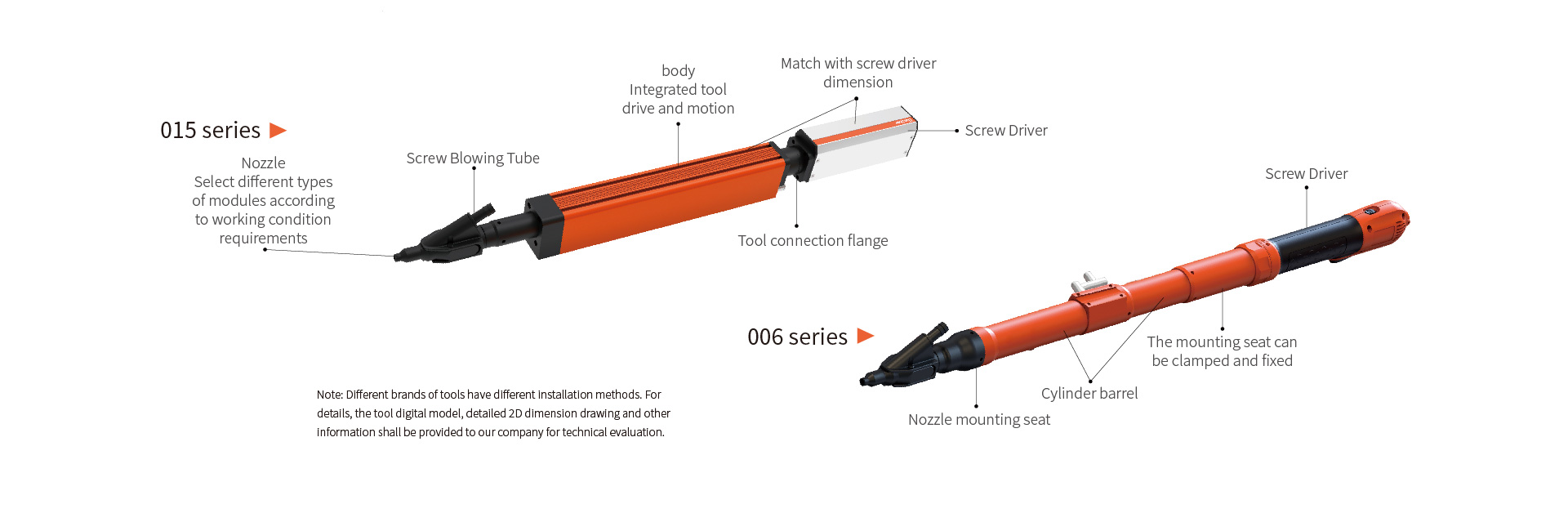

Product Structure

Product Parameters

Module type	Torque range	Type of working condition	Stroke of vacuum tube
Integrated module Blow Screw	1~15Nm	No interference And One-side interference	L30/50mm
Integrated module Handheld blow screw	0.6~6Nm	No interference And One-side interference	L30/50mm
Integrated module Normal Vacuum	1~15Nm	Multi-sides interference And Countersink	H60/H100mm
Integrated module Handheld Normal Vacuum	0.6~6Nm		H60/H100mm
Integrated module Pick Vacuum	1~15Nm		H60/H100/H150/H200(Hexagon head)mm

Product Video

Releated Cases

New Energy Vehicle Industry

Integrate clean feeding technology, intelligent tightening technology, <br/>digital and intelligent software system to accompany every step of <br/>intelligent assembly upgrade of new energy vehicle industry.

Automotive?Industry

It covers the assembly application scenarios of various parts and components, and drives the intelligent assembly of automobile manufacturing industry to achieve high-quality and high-efficiency development.

Energy?Storage?Industry

Focus on the innovation of automatic feeding and intelligent tightening technology to ensure the safety and stability of energy storage products.

Communications?Industry

Through automatic assembly equipment, reduce manual intervention, ensure the accuracy of production and assembly, and improve the quality and efficiency of production and assembly of communication products.

3C?Electronics?Industry

Focus on building a "flexible intelligence +" technology innovation system to promote the intelligent transformation and upgrading of 3C electronic assembly.
