Step Feeder

Suitable Screw Size:M2-M24

Step Feeder Mechanism Manufacturers Danikor is designed for feeding long bolts and screws.The Step Feeder Mechanism has four available models that meet various feeding needs, including screw air blowing type and pick-up type.The Step Feeder Mechanism has added richer extended functions, such as scanning code to open the cover, full material detection, special treatment of screw track with glue and oil, removal of abnormal screws such as flat and washer pads stuck in threads or missing rubber pads, air source pressure detection, level monitoring, three color lights, etc.

Product Advantages

Low Screw jamming

? The Step Feeder Mechanism's structure has been upgraded and optimized to effectively reduce the risk of screw jamming. The jamming rate of standard screw is 50PPM, and the rate of screw with flat and washer is 200PPM；

? The Step Feeder Mechanism's vibration track, with its multi-faceted screening structure, avoids the crowding of multiple screws.

Clean

? No vibration source is not easy to generate debris, and the cleaning module dedusts again;

? Optional track cleaning.

Error-proofing

? Scan the code and open the cover;

? ± 1mm long and short screw detection and other extended function modules.

Reduce noise

? Special structure to reduce impact noise.

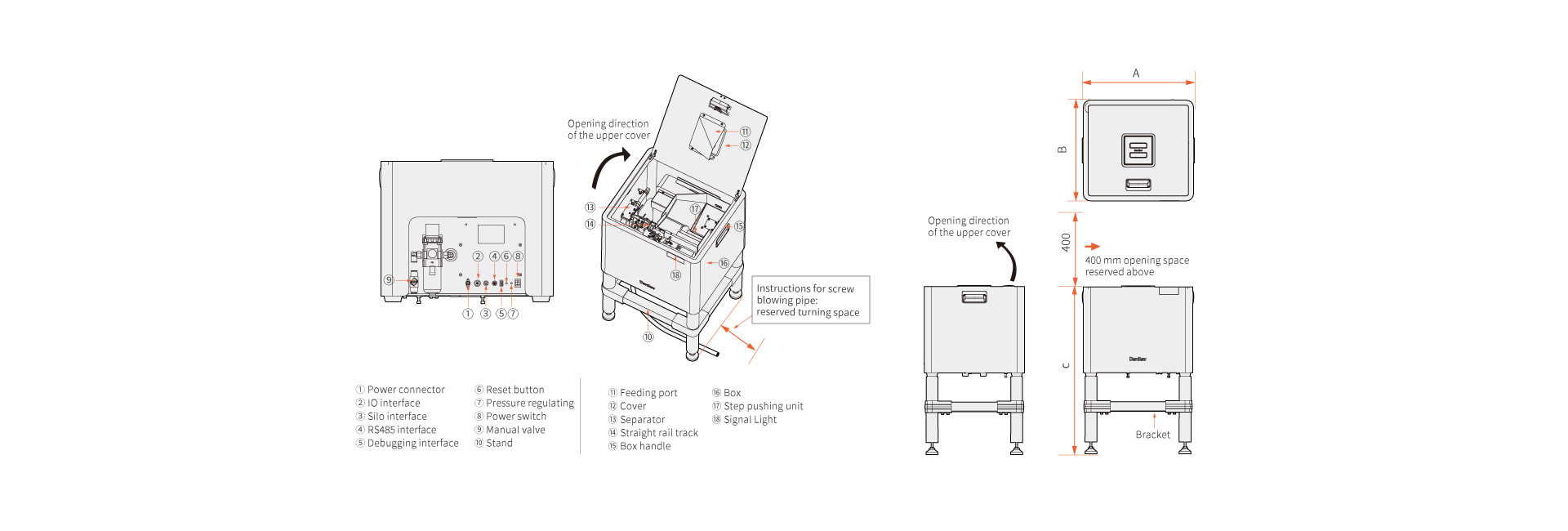

Product Structure

Product Parameters

Capacity /L	Channel type	Weight /kg	Rated air pressure /Mpa	Power source	Rated power	Air consumption m3/min	Inlet pipe diameter /mm	Noise value* （1m外）dB	I/O line /m	Power cord /m	Blow screw tube /m
1.25	Single channel C1	38-60	0.6	Equipment voltage DC24V (guest supply voltage 220V/50Hz)	120W	0.25-0.3	10	75dB (excluding blowing sound of solenoid valve)	5	2	5/10
	Dual channel C2	38-42				0.4-0.45
	Single channel pickup P1					0.15-0.2					-
2	Single channel C1				80W	0.25-0.3					5/10
	Dual channel C2					0.4-0.45
	Single channel pickup P1					0.15-0.2					-
4	Single channel C1	170-175			240W	0.4-1	12	80dB (excluding blowing sound of solenoid valve)			5/10
	Dual channel C2	175				0.55-0.75
	Single channel pickup P1	170				0.3-0.45					-

Feeder-scope Of Application For Screws

Capacity /L	Screw type	Screw range	length of screw /mm	Maximum Cap Diameter/mm	LDR
1.25L	Standard screw	M3~M5	M3~M5:≤45 M6~M8:≤40	5.5≤D≤15	1.3≤L/D≤7.5
	Combination screw	M6~M8			1.2≤L/D≤7.5
	Standard screw	M3~M4			1.7≤L/D≤7.5
	Combination screw	M5~M8			1.6≤L/D≤7.5
1.5L	Standard screw	M3~M5	M3~M5:≤45 M6~M10:≤60	5.5≤D≤26	1.3≤L/D≤7.5
	Combination screw	M6~M10			1.2≤L/D≤7.5
	Standard screw	M3~M4			1.7≤L/D≤7.5
	Combination screw	M5~M10			1.6≤L/D≤7.5
4L	Standard screw	M4~M14	M4~M8:≤100 M10~M14:≤65	12≤D≤27	1.25≤L/D≤10
4L	Combination screw	M4~M14	M4~M8:≤100 M10~M14:≤65	12≤D≤27	1.6≤L/D≤10
Huge	Standard screw	M4~M24	L≤250	27≤D≤43	-
Huge	Combination screw	M4~M24	L≤250	27≤D≤43	-
